Will a MagSafe ring sticker inside 3mm silicone hold a 240g phone
Assessment of magnetic hold when a MagSafe ring sticker is placed inside a 3 mm silicone case and used to attach a 240 g phone to a 50 mm water bottle. Covers governing physics, variability
Is a MagSafe ring sticker inside my 3 mm silicone case enough to hold my 240 g phone on a 50 mm water‑bottle? Short answer: measure it — perform static pull, slip‑angle, and dynamic acceleration tests; many stickers fail under real shocks.
On this page (8 sections)
- Key takeaways
- Practical testing: is a MagSafe ring sticker inside my 3 mm silicone case enough to hold my 240 g phone on a 50 mm water‑bottle
- Consolidated effects of 3 mm silicone thickness and 50 mm bottle curvature
- Official Apple MagSafe vs third‑party ring stickers — why it matters
- Practical testing methods and tools (beyond a simple pull force gauge)
- Estimating risk for a 240 g phone on your setup and recommended mitigations
- References and limitations of available data
- Questions people still ask
Part of our guide on non-rotating mount for gym bar
This analysis explains the physics behind magnetic weakening with distance, consolidates the practical effects of a 3 mm silicone case and a 50 mm bottle, and gives concrete tests and tools so you can measure whether your sticker will safely hold a 240 g phone.
| Phone weight | 240 g |
|---|---|
| Case thickness | 3 mm silicone |
| Bottle diameter | 50 mm |
| Magnetic pull loss | Varies with distance and magnet; measure your specific combination rather than assume a fixed percentage |
| Effective hold | Depends on magnet strength (official vs third‑party), case separation, contact area, and dynamic loads |
| MagSafe ring size | Typical ring ~28 mm diameter for many designs; variants exist |
Key takeaways
- Magnetic pull decreases as distance increases—measure your exact setup rather than relying on a single assumed reduction percentage.
- A 3 mm silicone case increases separation between magnet and phone components and reduces magnetic coupling; bottle curvature reduces contact area and friction—these two effects together make hold less reliable.
- Official Apple MagSafe accessories and third‑party ring stickers have different magnet designs and strengths; results vary significantly between products.
- Dynamic forces from workouts (shocks, vibrations, accelerations) can quickly overcome magnetic adhesion if the magnetic margin is small.
- Test your combination with practical methods (tilt/slip tests, pull/tension measurements, accelerometer logging), and add mechanical support (clamp, sleeve, strap) when in doubt.
Practical testing: is a MagSafe ring sticker inside my 3 mm silicone case enough to hold my 240 g phone on a 50 mm water‑bottle
Direct measurements are the only reliable answer to whether a MagSafe ring sticker inside a 3 mm silicone case will hold a 240 g phone on a 50 mm water‑bottle. Start with three complementary tests: a static pull, a slip‑angle tilt, and a dynamic acceleration check. Each probes a different failure mode — separation, lateral slip, and shock — and together they show whether the magnetic coupling and friction are sufficient for your real use.
Begin with a static axial pull using a force gauge to determine peak tensile attraction with the sticker and the silicone layer in place. Follow with a tilt / slip‑angle test to capture lateral friction effects on the bottle’s curvature, because a phone often slides rather than separates cleanly. Finish with a dynamic acceleration test (hand‑simulated jerks or a shaker) to find the peak g at which the phone dislodges; this is the most realistic for workout or commute shocks.
Record surface condition and repeat cycles; moisture, sweat, or oils lower the coefficient of friction and can move the sticker inside a soft 3 mm case. High‑speed video plus the phone’s accelerometer clarifies whether failure begins as peel, rotation, or simple slip. Use torque or peel setups if you suspect rotational moments around the bottle are the dominant risk, since curved contact shifts loads into moments rather than pure tensile force.
Digital Force Gauge Push and Pull Meter Dynamometer Tension Pressure Tester
Measures pull force up to 300 N, well above the 5 N minimum needed to test your magsafe ring sticker's hold.
Consolidated effects of 3 mm silicone thickness and 50 mm bottle curvature
Two parts of your setup reduce effective magnetic hold: the silicone case thickness that separates the magnet from magnetic material in the phone, and the bottle’s curvature that reduces contact area and friction. Rather than repeating these separately across the article, consider them together because they act in combination. We cover capturing full body lifts in its own article.
Case thickness: a 3 mm silicone layer places the magnet further from any ferrous components or a steel receiver. That separation lowers the magnetic coupling. Different silicones have different compressibility; a very soft silicone may compress slightly under pressure, improving coupling a bit, whereas a stiff silicone keeps the magnet farther away.
Bottle curvature: a 50 mm diameter cylinder is relatively narrow, so a flat phone or magnet ring will only touch along a limited area (line or small points) rather than across the whole circular ring. Reduced contact area decreases friction and makes the magnet‑phone assembly more vulnerable to lateral forces. When combined with greater distance from the magnet to the receiver, the margin of safe hold shrinks further.
Together these effects mean the magnet must supply enough vertical (and often lateral) force to overcome gravity plus any inertial forces from motion, while friction and contact geometry determine whether the phone will slip before magnetic pull is exceeded. Before you commit to anything, it is worth looking at galaxy s23 ultra magnetic hold test.
Official Apple MagSafe vs third‑party ring stickers — why it matters

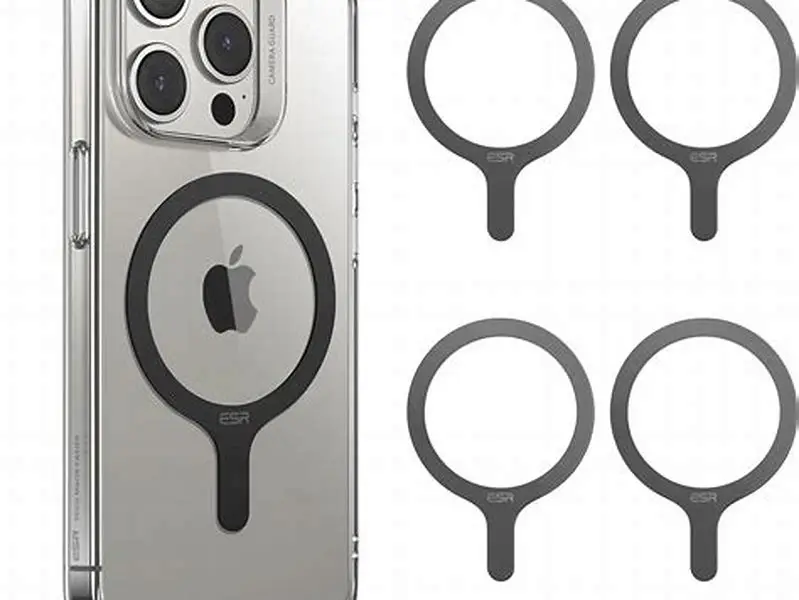

Not all 'MagSafe ring stickers' are the same. Apple’s MagSafe system for iPhone uses a ring of magnets sized and arranged to aid alignment for wireless charging and compatible accessories. Apple describes the system in its support resources but does not publish a single standardized pull‑force number applicable to every attachment scenario.
Third‑party ring stickers and magnet arrays can vary widely in magnet grade, number of magnets, adhesive strength, and design. Some third‑party stickers use weaker magnets or different geometries that produce lower pull forces, while others may use stronger magnets but sacrifice alignment or safe charging behavior.
If you are evaluating hold strength, explicitly note whether your ring sticker is an official Apple accessory or a third‑party product and, if third‑party, check the manufacturer’s specifications and tests (if available). Where manufacturers do not publish pull or torque metrics, favor direct measurement. Before you commit to anything, it is worth looking at restoring suction cup grip.
Practical testing methods and tools (beyond a simple pull force gauge)
A pull force gauge is useful to measure peak tensile force required to separate a magnet from a surface, but it’s not the only or always most representative test for a phone on a curved bottle. Below are additional methods and tools to assess real‑world hold strength.
Tilt / slip‑angle test: place the phone on the bottle and slowly increase the tilt until the phone begins to slide. Measuring the tilt angle gives a practical measure of the combination of magnetic grip and friction; you can convert tilt to a minimum lateral force required to cause slip (using basic trigonometry).
Dynamic acceleration test: attach the bottle to a vibration or shaker table or simulate motion by accelerating the bottle (or phone) horizontally while recording with an accelerometer app. Record the peak g values at which slipping or loss occurs. This simulates workout shocks more realistically than a static tensile test.
Torque or peel tests: because the phone may be pulled around the curved surface, tests that measure rotational moments or peeling forces (using a torque tester or a setup where force is applied at an offset) can be informative.
Coefficient of friction and surface condition tests: use a small tribometer or a simple weighted pull at constant angle to estimate friction between silicone and the bottle finish. Surface roughness, sweat, and moisture change friction substantially.
High‑speed video + accelerometer: film attempted slips and correlate with phone accelerometer data to quantify the event and understand failure modes.
Environmental tests: check behavior with moisture, sweat, or after repeated attachments to see adhesive or magnet alignment changes.
Estimating risk for a 240 g phone on your setup and recommended mitigations
Because the outcome depends on magnet grade (official vs third‑party), case compressibility and thickness, bottle curvature, and workout dynamics, it’s safest to assume that a single ring sticker inside a 3 mm silicone case on a 50 mm bottle carries non‑negligible risk of slippage or drop for a 240 g phone during vigorous activity.
If you must try it: (1) identify your sticker type (official vs third‑party), (2) perform the tests listed above (tilt/slip, pull, dynamic), and (3) inspect for any movement during light exercises before progressing to heavier motions.
Mitigations that increase safety include adding mechanical support (a clamp, strap, or sleeve), using a stronger purpose‑built magnetic mount designed for through‑case mounting, switching to a thinner or firmer case, or using a bottle with a larger diameter or textured sleeve to increase contact area and friction.
References and limitations of available data
Explicit, standardized pull‑force numbers for MagSafe stickers through specific thicknesses of silicone and on curved surfaces are not widely published by manufacturers. Apple documents MagSafe alignment and accessories but does not provide a generic pull‑force chart for all use cases. Third‑party vendors sometimes publish pull or holding force figures for specific mounts but these don’t transfer directly to your sticker + case + bottle geometry.
Relevant background reading on magnet behavior and distance dependence includes standard electromagnetics and magnetostatics texts that describe how magnetic field strength and resultant forces decrease with separation and depend on geometry and material properties. Practical engineering sources on magnetic fasteners discuss how pull force is affected by air gaps, interface geometry, and receiver materials.
Because of the lack of universal published metrics for this exact scenario, the recommendations above emphasize measurement of your real setup and conservative mechanical backups.
A MagSafe ring sticker inside a 3 mm silicone case is unlikely to reliably hold a 240 g phone on a 50 mm water bottle during typical workout motions without additional mechanical support or verification via specific tests.
Questions people still ask
Can I improve hold by using a thinner or harder phone case?
Yes. Thinner cases reduce separation between the magnet and receiver and increase magnetic coupling. Hard cases can also improve friction on bottle surfaces. However, even thin cases change the geometry; measure the new configuration to confirm improvement.
Does a larger diameter bottle improve magnetic hold?
Generally yes: larger diameters reduce curvature so the phone and magnet make more surface contact, increasing friction and effective engagement. Surface finish matters too — textured or rubberized bottles give better grip than polished metal.
Are there stronger magnets or mounts compatible with MagSafe that can hold heavier phones?
Stronger magnetic mounts and multi‑magnet arrays exist, but compatibility with MagSafe alignment and wireless charging varies. Purpose‑built through‑case magnetic mounts are safer choices than improvised stickers; check manufacturer pull/holding specs and test before relying on them.
Does environmental moisture affect magnetic hold on silicone cases?
Moisture and sweat reduce friction between silicone and bottle surfaces, making slip more likely even if magnetic adhesion remains unchanged. Keep contact surfaces dry or use mechanical support when moisture is expected.
Is it safe to rely on magnetic mounts in high‑vibration environments like gym machines?
Magnetic mounts alone are risky under high vibration or impact. Supplementary mechanical support (strap, clamp) is recommended to prevent drops.
