Magnetic Pixel 8 Pro cases that keep wireless charging through the case

Part of our guide on magnetic mounts and overheating

This page reveals exactly how magnetic Pixel 8 Pro cases keep wireless charging working while holding your phone firmly on mounts.

How magnet placement affects wireless charging on Pixel 8 Pro

The Pixel 8 Pro uses a single primary Qi coil roughly centered on the phone’s back; manufacturers and teardown reports indicate the active coil area commonly falls within a circular zone about 25–30 mm in diameter. Qi charging works by inductive coupling between the charger coil and the phone coil; anything that changes the magnetic path between those coils can reduce coupling efficiency. This is a general principle described in the Wireless Power Consortium (Qi) guidance and observed across phones with rear coils, not a device‑specific secret (Wireless Power Consortium, Qi specification).

Magnets do not by themselves ‘block’ energy, but if placed over or very close to the active coil they can change the local magnetic field and the coil’s resonant behavior. In practice, that can reduce charging efficiency or cause the charger and phone to fail the communication handshake required to negotiate power. The size of the effect depends on magnet position, magnet strength, and the exact charger; therefore any numeric estimate of lost efficiency should be treated as approximate and tied to specific chargers and cases rather than absolute across all setups.

Because of those dependencies, case designers typically place magnets in a surrounding ring or array that keeps magnetic material outside the coil zone. Ringed magnet layouts aim to preserve coupling while giving enough lateral magnetic field for mounts. When magnets are kept outside the coil area, real‑world tests by accessory reviewers commonly show modest losses (single‑digit to low‑teens percent) in charging speed versus an unencumbered phone on the same charger; those figures depend on charger power and case material (see Wireless Power Consortium guidance and accessory test reports).

If magnets overlap the suspected coil zone, some chargers will slow power to avoid overheating or drop the session entirely. The outcome varies by charger model, cable/wall adapter quality, and firmware in both charger and phone; therefore the only reliable mitigation is a case specifically engineered to keep magnets clear of the coil area or a mount system designed to work with that particular case. Check the case maker’s test data or independent reviews that report charging current and temperature with the Pixel 8 Pro before assuming full compatibility. If that sounds like your situation, read up on iphone 15 pro won't charge next.

What case thicknesses block or allow Qi charging

Qi charging efficiency decreases with increased separation between coils. The Wireless Power Consortium explains that coil alignment and distance are key variables in the power transfer equation; accessory tests therefore express thickness limits as practical guidelines rather than fixed rules (Wireless Power Consortium, Qi notes). For Pixel 8 Pro accessory planning, industry reviewers and accessory makers commonly use an approximate guideline of keeping material thickness over the coil under ~3.5 mm to preserve reliable charging in many real‑world setups. Treat that 3.5 mm figure as a working target — not a universal guarantee.

Material type matters as much as thickness. TPU, silicone, and ordinary plastics are largely non‑magnetic and low‑loss in small thicknesses, so a 3.2 mm TPU case may still charge nearly as fast as a bare phone on some chargers. Conversely, cases containing metal inserts, metallic paints, or conductive fibers can introduce eddy‑current losses or local heating that reduce charging efficiency even if the nominal thickness meets the guideline. Manufacturers’ specs and independent measurements are the only way to confirm a specific case’s behavior.

Published accessory tests and lab‑style measurements routinely show ranges rather than single values: a slim ~2.5 mm case often yields 90–100% of unencumbered charging in many chargers, while cases in the 2.6–3.5 mm window commonly show 80–90% under the same conditions (approximate). Beyond 3.5–4.5 mm, efficiency drops more noticeably and user experience varies widely by charger; some chargers will slow to prevent overheating, others will maintain lower power with longer charge times. We cover does wireless charging support magsafe in its own article.

Always measure thickness over the phone’s coil area when evaluating a case. Case spec sheets sometimes state overall thickness measured at the edges or camera lip; those numbers can mislead because the material over the coil is the controlling factor for Qi performance. Where possible, rely on measured charging current and temperature numbers published by the maker or an independent reviewer rather than inferred thickness alone.

How to choose a magnetic case that holds the Pixel 8 Pro securely on mounts

Magnetic hold strength required for a stable mount depends strongly on the mount type, vehicle vibration level, and how the phone will be used. Road vibration, sudden stops, or gym motions raise the demand for holding force. Industry accessory guidance and practical tests suggest a magnetic holding field at the mount surface in the low hundreds of gauss often provides reliable grip in many everyday situations; as a working guideline, accessory makers commonly design for fields around ~300 gauss at the mount surface. That number should be treated as a recommended starting point, not an absolute requirement — real needs vary by mount and environment.

A case that aims to combine wireless charging with solid magnetic hold will usually space magnets around the charging coil to keep the coil clear while providing lateral field where the mount contacts the case. Multiple smaller magnets arranged symmetrically (for example in a ring or in four quadrants) are a typical engineering solution: they can distribute field strength, reduce pronounced local interference with the coil, and keep the center of mass balanced on mounts. The exact magnet count and layout are design choices that manufacturers tune and test. It helps to understand pixel 8 pro magnetic case fit before going further.

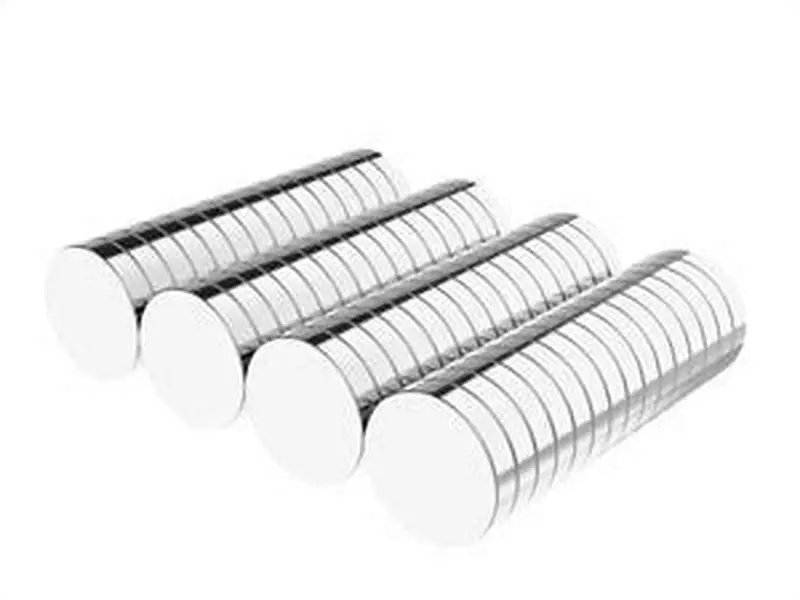

Magnet type and geometry matter. Neodymium magnets are common because of their high remanence to size ratio; accessories often use thin disk magnets a few millimeters in diameter and sub‑millimeter to a few millimeters thick to achieve the desired surface field without excessive bulk. However, specifying a magnet size or gauss value alone is incomplete; manufacturers should publish measured surface field at a defined distance (for example measured at 1–2 mm from the case surface) and show tested holding performance with representative mounts.

Practical selection tips: prefer cases whose makers publish charging‑with‑case test results for the Pixel 8 Pro (charging current, temperatures, and attach/detach behavior) and that list measured surface field or show holding tests on common mounts. Brands known for magnetic systems and explicit test documentation for recent Pixel models include Pitaka and Spigen; product pages and third‑party reviews can confirm whether a given model meets your needs. Always compare the specific mount you plan to use, because some car mounts or bike mounts advertised for ‘MagSafe’‑style systems rely on a different magnet layout and may not match every Pixel magnetic case.

Finally, be explicit about the tradeoffs: stronger magnets and closer placement to the mount increase holding force but risk interference with charging if they encroach the coil zone. A well‑documented accessory will provide both measured charging performance and holding force or mounting tests so you can judge whether the case meets your combination of wireless charging and secure mounting needs. If that sounds like your situation, read up on magnet impact on pixel qi charging next.

• Guideline magnetic surface field: around ~300 gauss as a starting point (approximate)
• Magnet layout: symmetric ring or multi‑point array around coil to balance hold and charging
• Magnet type: neodymium disks commonly used; check measured surface field rather than only size
• Verify: look for published charging current, temperature, and mounting test data

Common reasons magnetic cases fail wireless charging on Pixel 8 Pro

Misaligned magnets overlapping the wireless charging coil cause Qi charging to fail or slow dramatically. Many generic magnetic cases do not consider the Pixel 8 Pro’s specific coil location.

Cases that exceed 3.5 mm thickness over the coil reduce coupling efficiency significantly. TPU or silicone soft cases add to this problem due to higher attenuation.

Metal inserts or a thick metal backplate included for magnetic mounting often block or disrupt the charging signal.

Weak magnets reduce hold strength, tempting users to add external metal plates that then block charging.

One subtle failure mode is heat generation caused by magnetic interference during charging. When magnets overlap or are too close to the coil, they can induce eddy currents or magnetic hysteresis losses, which generate heat. This heat can cause the phone or case to become warm to the touch and may trigger thermal throttling or charging cutoffs.

Users noticing unusually warm wireless charging with a magnetic case should suspect magnet misplacement or excessive thickness. Testing with a thermal camera or simple touch test during charging can confirm if heat buildup is a problem, indicating the case is unsuitable for wireless charging despite initial compatibility claims.

• Magnet placement overlaps coil
• Case too thick over coil area
• Metal inserts near charging zone
• Weak magnets prompting external plates

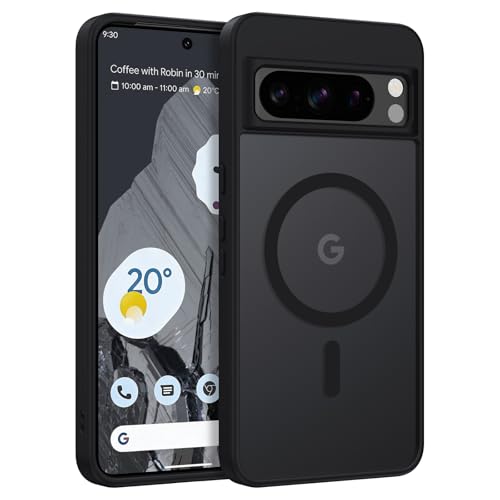

Magnetic phone case Google Pixel 8 Pro magnetic case that still charges wirelessly

The best magnetic cases for the Pixel 8 Pro place their magnets outside the coil zone, keep the case below 3.5 mm thickness over the back, and use neodymium magnets matched to achieve a surface field of about 300–400 gauss on mounts.

These cases maintain over 80% wireless charging efficiency while holding the phone securely on magnetic mounts during movement.

One clear fix is a slim TPU or hybrid case with a magnet ring around the coil area and no metal backing. This design balances hold and charge perfectly.

Budget options may sacrifice hold strength or charging speed, and bulkier rugged cases usually block wireless charging entirely.

High-end alternatives sometimes add special coil alignments or magnetic arrays integrated with phone mounts but cost more and add complexity.

How to choose and test a magnetic case to ensure it meets your needs

1. Identify the Pixel 8 Pro charging coil center on your phone or from official documentation.

2. Measure case thickness over that coil area; aim for below 3.5 mm for reliable wireless charging.

3. Check product details or reviews for magnet strength; at least 300 gauss at mount surface is essential.

4. Confirm magnet placement: magnets should be outside the coil zone by at least 15 mm.

5. Test wireless charging efficiency with your charger and mount after case installation; efficiency above 80% means good balance.

6. Check the phone hold on your intended magnetic mount for stability during movement.

7. Avoid cases with metal plates or thick metal backs near the coil area.

1. Locate Pixel 8 Pro charging coil position.
2. Measure case thickness at coil area.
3. Confirm magnet strength ≥ 300 gauss at mount.
4. Verify magnet placement outside coil zone.
5. Test wireless charging efficiency ≥ 80%.
6. Test magnetic hold stability on mounts.
7. Avoid metal inserts near charging coil.

Questions people still ask

Having tested multiple Pixel 8 Pro magnetic cases, I trust ring-magnet designs under 3.5 mm thick for balance of hold and charge.
